Achilles Tendinitis and Orthotics: What a Foot Surgeon Actually Recommends

By Dr. Christopher R.D. Menke, DPM, FACFAS — Double Board-Certified Foot & Ankle Surgeon, Founder of 26 Apothecary

Achilles Tendinitis and Orthotics: What a Foot Surgeon Actually Recommends

Achilles tendon pain is one of the presentations I see most often in active adults over 40 — and in my experience, it is also one of the most consistently undertreated in the early stages. People manage it with rest, return to activity when the rest-related pain fades, and then find themselves in a cycle of flare-up and partial recovery that drags on for months or years.

Dr. Christopher R.D. Menke, DPM, FACFAS — double board-certified in foot surgery and rearfoot and ankle reconstruction, founder of 26 Apothecary — explains the biomechanics of Achilles tendinitis and where physician-curated orthotics fit into a conservative management sequence.

What Is Achilles Tendinitis?

Achilles tendinitis — more precisely termed Achilles tendinopathy — is pain, dysfunction, and structural change in the Achilles tendon, the largest tendon in the body, running from the calf musculature to the posterior heel bone. There are two primary anatomical locations: mid-portion tendinopathy, occurring 2 to 6 centimeters above the calcaneal insertion, and insertional tendinopathy, at the bone-tendon junction.

The distinction matters clinically because the two presentations respond differently to treatment. Both are appropriate candidates for conservative care before any surgical discussion occurs.

Why Foot Mechanics Drive Achilles Tendinitis

Every time the foot contacts the ground, a chain of mechanical events transmits force from the ground through the foot, ankle, and lower leg. When the subtalar joint overpronates, the heel everts excessively, and the tibia internally rotates. This rotational torque on the Achilles tendon is a primary driver of mid-portion tendinopathy.

High arches — cavus foot — create the opposite problem. The rigid, supinated foot fails to absorb shock adequately, concentrating impact forces at the Achilles insertion and contributing to insertional tendinopathy. Both extremes can be addressed, at least partially, through orthotic design.

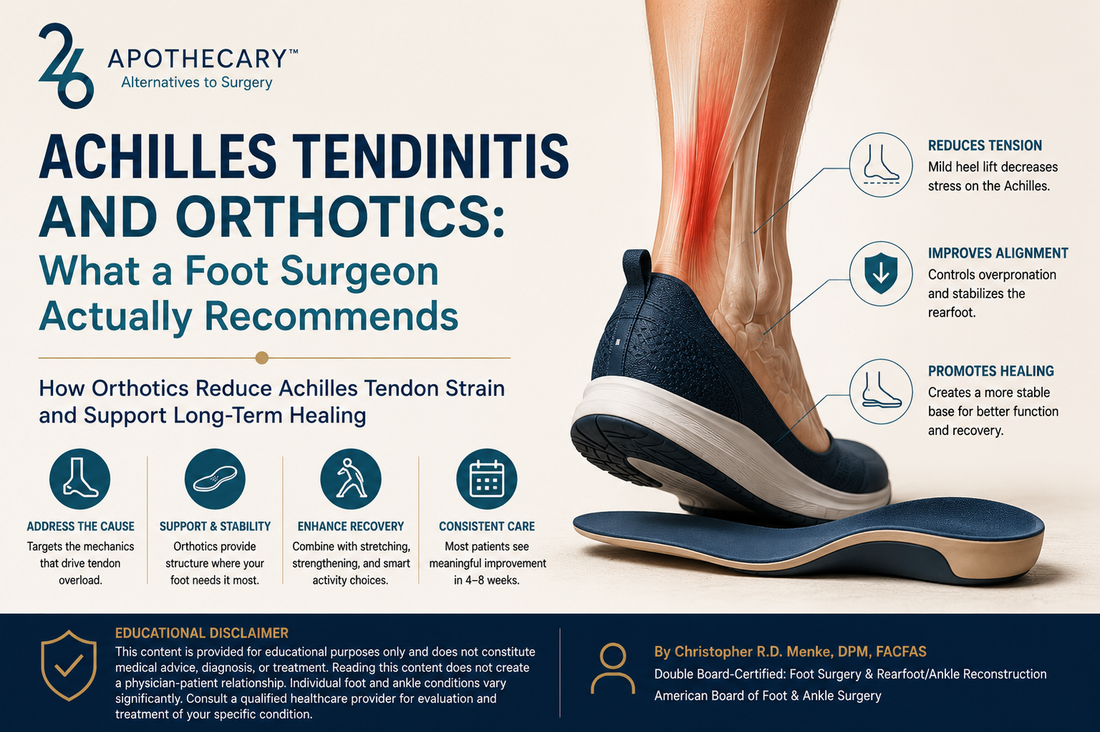

How Orthotics Reduce Achilles Tendon Load

A semi-rigid orthotic addresses Achilles tendinopathy through three primary mechanisms: it controls rearfoot eversion during the contact phase of gait; it provides a mild heel lift effect that reduces the tensile demand on the Achilles; and it creates a more stable platform for the foot. People managing Achilles tendinopathy conservatively often report meaningful reduction in daily tendon pain within four to eight weeks of consistent use with appropriate footwear, though individual response varies.

The Role of the Achilles Heel Sleeve

For insertional Achilles tendinopathy specifically, the posterior heel cushioning provided by a gel sleeve directly addresses the compressive loading at the Achilles insertion. Used in conjunction with an orthotic, the combination addresses both the compressive and tensile contributors to insertional symptoms.

The Conservative Care Sequence

Orthotics and heel sleeves are most effective when part of a complete conservative care approach: a progressive calf and Achilles stretching program — specifically eccentric heel drop exercises — and appropriate footwear that provides a stable heel counter and adequate heel-to-toe drop. Activity modification during the acute phase reduces ongoing load, but controlled loading is essential for tendon remodeling.

When to See a Foot and Ankle Specialist

• Achilles pain that has not responded to 4 to 6 weeks of consistent conservative care
• Sudden sharp pain in the posterior heel or calf following a push-off movement — this warrants urgent evaluation to rule out partial or complete tendon rupture
• Visible swelling, a palpable gap in the tendon, or inability to plantarflex against resistance
• Symptoms worsening despite conservative management

Frequently Asked Questions

Do I need custom orthotics for Achilles tendinitis, or will OTC orthotics work?

For most people with Achilles tendinopathy driven by pronation mechanics, a well-designed semi-rigid OTC orthotic provides meaningful biomechanical benefit. Custom orthotics offer more precise correction and are appropriate when OTC options have been tried without adequate response. A podiatrist can evaluate which is most appropriate for a given presentation.

Should I stop running entirely if I have Achilles tendinitis?

Not necessarily, but running volume and intensity should be reduced significantly during symptomatic phases. A gradual, progressive return to loading — guided by symptom response — is the standard rehabilitation approach.

How long does Achilles tendinopathy take to resolve?

Mid-portion tendinopathy typically shows meaningful improvement over 3 to 6 months with consistent conservative care. Insertional tendinopathy is generally slower, with resolution timelines of 6 to 12 months not uncommon. Both respond better when addressed early.

What footwear is best for Achilles tendinitis?

During symptomatic phases, shoes with a heel-to-toe drop of 8 to 12 millimeters reduce the resting stretch on the Achilles tendon. A firm heel counter stabilizes the rearfoot. Avoid flat sandals or barefoot-style shoes during active treatment phases.

About the Author

Dr. Christopher R.D. Menke, DPM, FACFAS is a double board-certified foot and ankle surgeon — board-certified in both foot surgery and rearfoot and ankle reconstruction. He completed his podiatric medical training at Temple University School of Podiatric Medicine in 2005 and his residency at Northlake Medical Center and DeKalb Medical in Georgia, completing in 2008. He is the founder of 26 Foot and Ankle and 26 Apothecary, and the founder of Surgeons of Service, a Georgia-based humanitarian surgical nonprofit. Every product in the 26 Apothecary catalog was selected through the same clinical lens Dr. Menke applies in the exam room and the operating room.
